CARAVONIX 12.8V 314Ah LiFePO4 Lithium Battery with Bluetooth & 250A BMS

Description

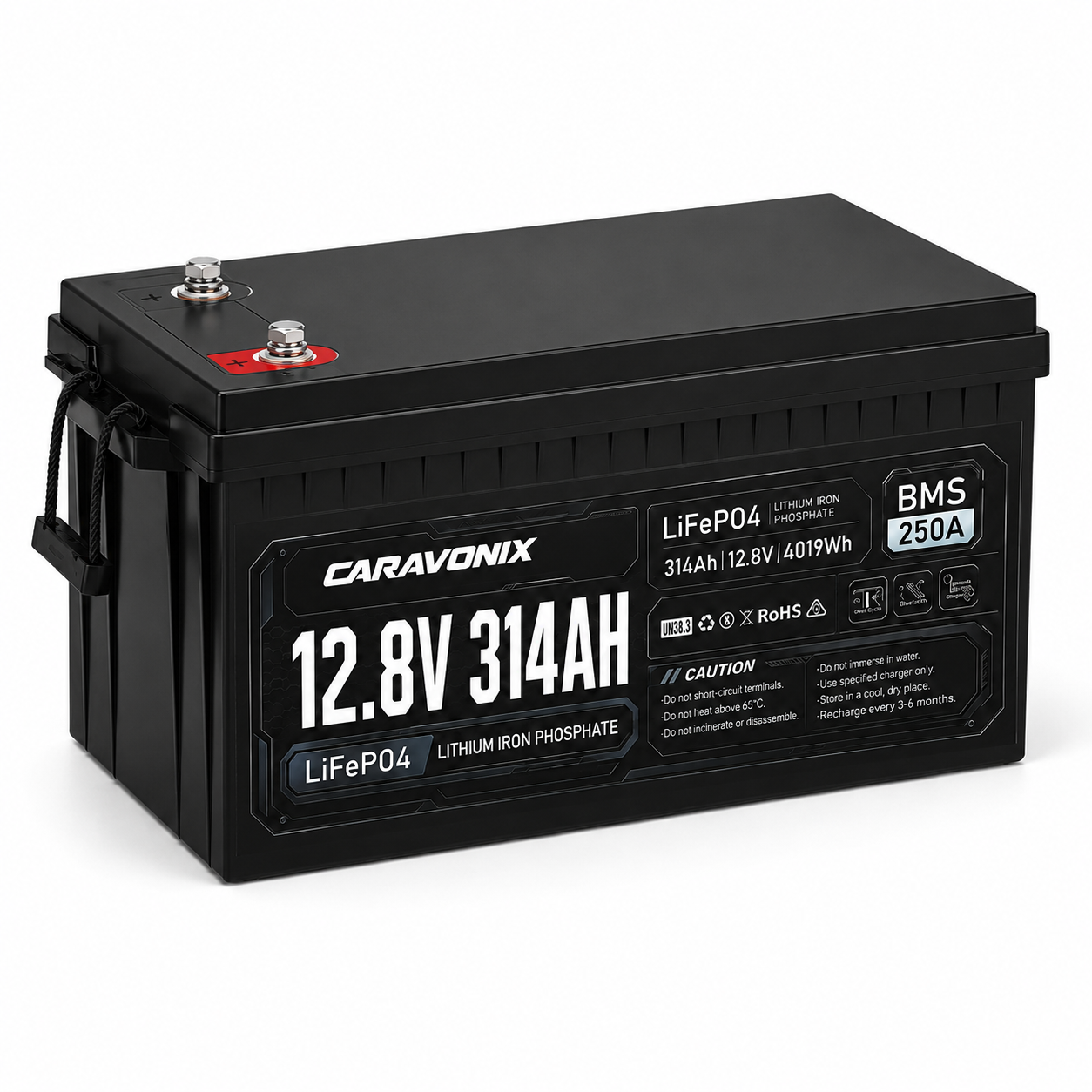

CARAVONIX 12.8V 314Ah LiFePO4 Lithium Battery

The CARAVONIX 12.8V 314Ah LiFePO4 battery provides high-capacity lithium energy storage for caravan, RV and off-grid electrical systems.

With a rated capacity of 314Ah and approximately 4.02kWh of stored energy, it combines Bluetooth connectivity, integrated BMS protection and high current capability in a durable ABS enclosure.

Why Choose the CARAVONIX 314Ah LiFePO4 Battery?

The CARAVONIX 314Ah LiFePO4 Battery is designed for caravan, RV and off-grid applications requiring high-capacity and reliable 12V energy storage. With Bluetooth monitoring, integrated BMS protection and a maximum discharge current of 250A, it is suitable for demanding touring and off-grid electrical systems.

KEY FEATURES

• 12.8V nominal voltage
• 314Ah rated capacity
• Approx. 4.02kWh energy capacity
• Lithium Iron Phosphate (LiFePO4) chemistry
• Bluetooth connectivity
• Built-in BMS protection
• 100A recommended charging current
• 160A maximum charging current
• 250A maximum discharge current
• Up to 5,000 cycles
• M8 terminals
• Durable ABS case
• 31.4kg battery weight

BLUETOOTH CONNECTIVITY

Bluetooth connectivity allows compatible battery information to be monitored from a connected device.

BMS PROTECTION

The integrated Battery Management System (BMS) provides protection against operating conditions including:

• Overcharging
• Over-discharging
• Over-temperature
• Short circuit

This helps protect the battery during normal operation.

HIGH CURRENT PERFORMANCE

The battery is designed for higher-current 12V electrical applications.

Recommended charging current:
100A

Maximum charging current:
160A

Maximum discharge current:
250A

LIFEPO4 BATTERY TECHNOLOGY

Lithium Iron Phosphate chemistry provides long cycle life and low self-discharge.

The supplied specification rates the battery for up to 5,000 cycles under specified operating conditions.

BATTERY BANK EXPANSION

Compatible batteries may be connected in series or parallel to create larger battery-bank configurations.

Battery bank design, charging equipment, cabling and protection devices must be correctly matched to the required system voltage and capacity.

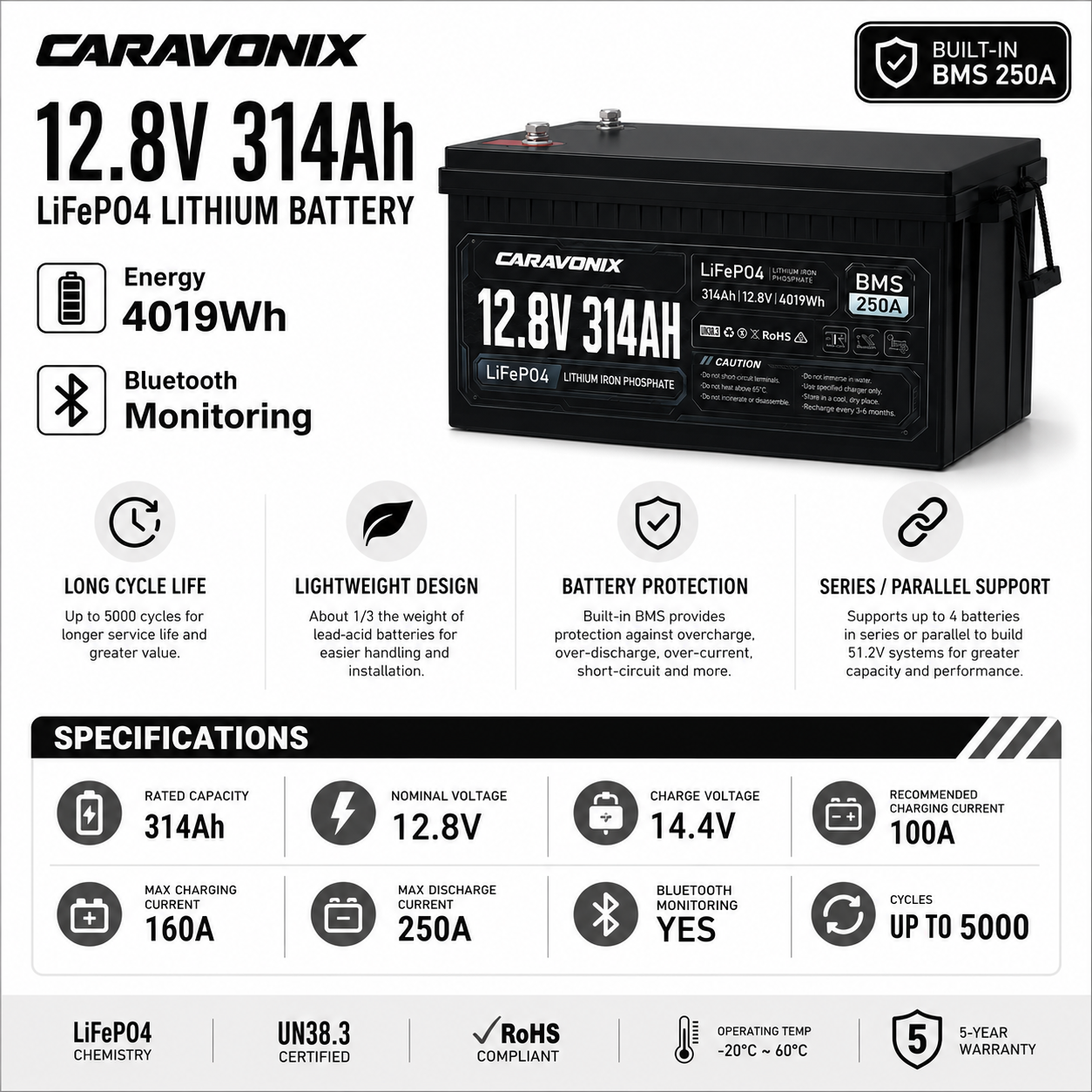

PRODUCT SPECIFICATIONS

Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal Voltage: 12.8V
Rated Capacity: 314Ah
Energy Capacity: Approx. 4.02kWh
Charging Voltage: 14.4V
Charging Cut-off Voltage: 14.6V
Discharge Cut-off Voltage: 10V
Recommended Charging Current: 100A
Maximum Charging Current: 160A
Maximum Discharge Current: 250A
Bluetooth Connection: Yes
Self Heating: No
BMS Protection: Yes
Internal Resistance: 25mΩ
Storage Temperature: 20–30°C
Charging Overheat Protection: 65°C
Discharge Overheat Protection: 75°C
Charging Low Temperature Protection: -7°C
Cycle Life: Up to 5,000 cycles

DIMENSIONS & CONSTRUCTION

Length: 570mm
Width: 290mm
Height: 290mm
Weight: 31.4kg
Terminal: M8
Case Material: ABS
Colour: Black

Looking for more caravan electrical products? Browse our Solar & Battery range.

FREIGHT QUOTE REQUIRED

Due to the size, weight and lithium battery freight requirements, shipping is quoted separately.

Submit your order through checkout and CARAVONIX will confirm product availability, freight requirements and the final delivered price before payment.
